ABOUT US: SAĞLAMTEK Defense & Aerospace located in Ankara, Turkey provides: • Anti-Jam Solutions • GNSS Systems • Antenna Solutions • RF&MW Components (for operational, telemetry and GNSS products) • Transmitter & Receiver Modules (for data & video link, mesh) • Navigation Devices • Mechanical Design & Manufacturing Services • Consultancy Services and other engineering solutions for defense & aerospace projects. One of our top qualities is that we deliver custom solutions for our customers. We can find the most schedule-effective, cost-effective & favorable solution for their project. Therefore please contact us to modify any technical properties of the products we deliver.

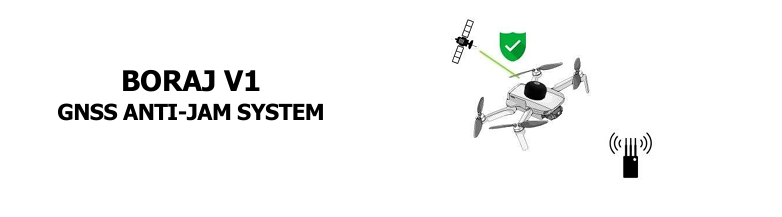

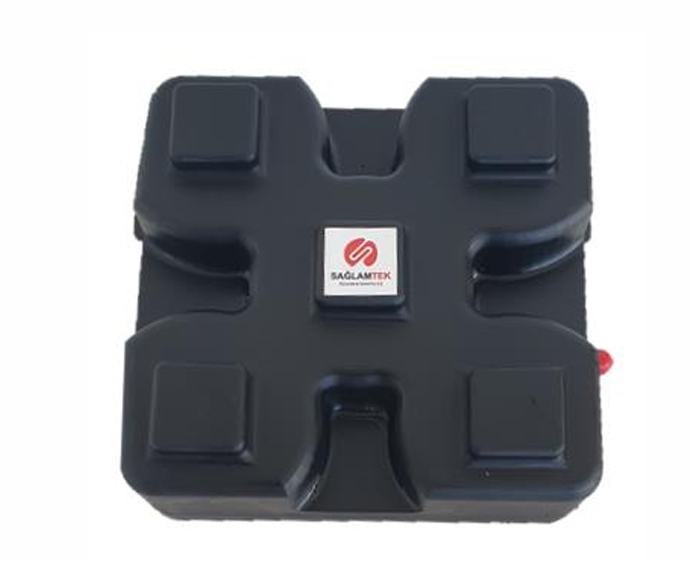

Highlights • 4-array antenna system • Improves the safety of satellite navigation in various platforms • Prevents GNSS jamming caused by Jammers • With anti-spoofing feature • When used with SAJ, BORAJ provides up to 95 dB suppression of unwanted signals
• 4-array antenna system • Improves the safety of satellite navigation in various platforms • Prevents GNSS jamming caused by Jammers • With anti-spoofing feature • When used with SAJ, BORAJ provides up to 95 dB suppression of unwanted signals
Highlights • 4-array antenna system • Improves the safety of satellite navigation in various platforms • Prevents GNSS jamming caused by Jammers • With anti-spoofing feature • When used with SAJ, BORAJ provides up to 98 dB suppression of unwanted signals

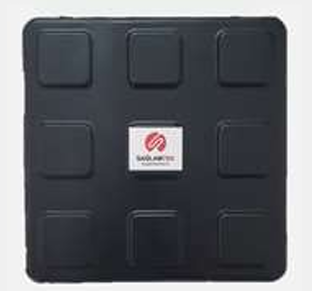

Highlights 8-array antenna system Improves the safety of satellite navigation in various platforms Prevents GNSS jamming caused by jammers With anti-spoofing feature Can be further developed via processing methods When used with SAJ, BORAJ provides up to 100+ dB suppression of unwanted signals

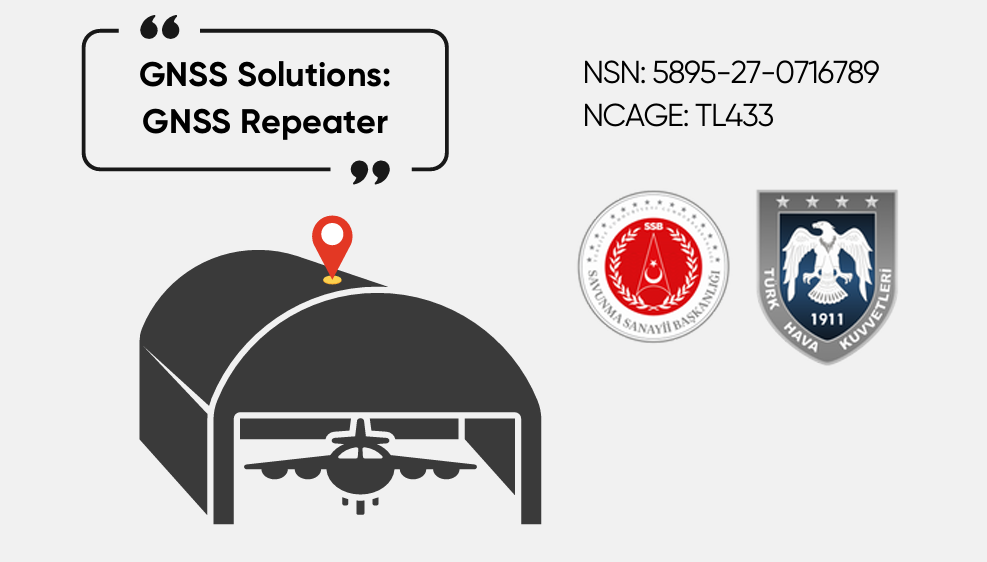

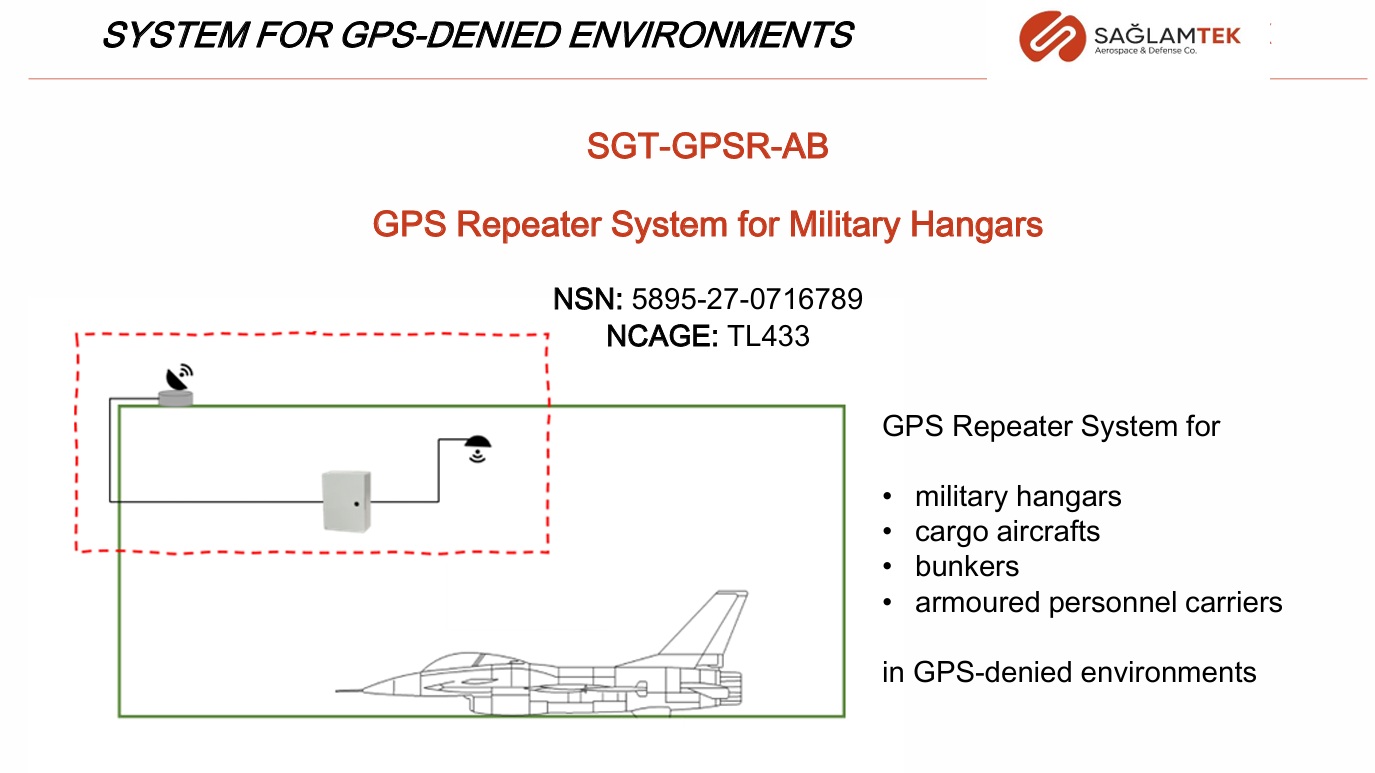

SGT-GPSR-AB GPS Repeater System for Military Hangars NSN: 5895-27-0716789 NCAGE: TL433 GPS Repeater System for • military hangars • cargo aircrafts • bunkers • armoured personnel carriers in GPS-denied environments

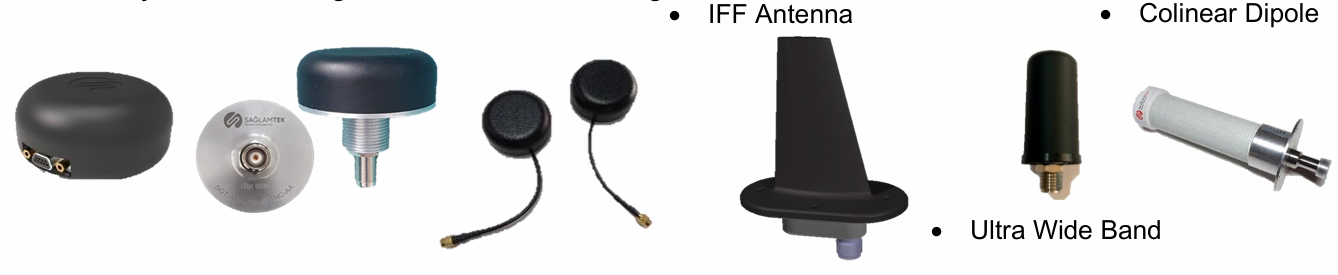

▪ WITH INTEGRATED LNA & RECEIVER (OPTIONAL) ▪ FOR ALL AEROSPACE APPLICATIONS ▪ AERODYNAMIC & CONFIGURABLE MECHANICAL DESIGN

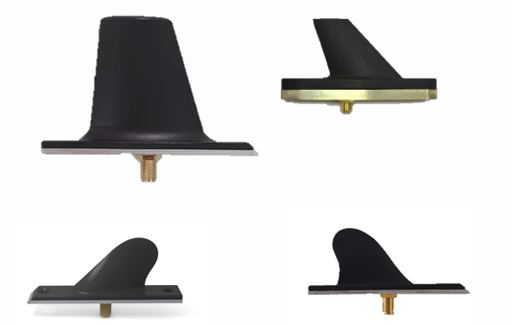

▪ HIGH GAIN & PERFORMANCE ▪ FOR TELEMETRY & DATA LINK APPLICATIONS ▪ MISSILE, UAV/DRONE, HELICOPTER, AIRCRAFT ▪ AERODYNAMIC & CONFIGURABLE MECHANICAL DESIGN

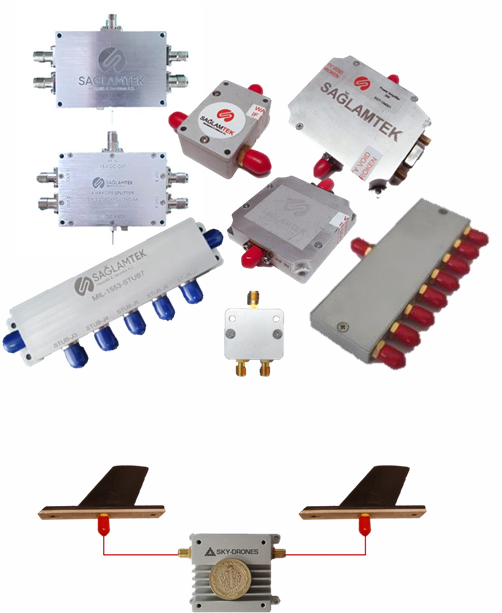

FOR VARIOUS FREQUENCY BANDS: ▪ 2-3-4-8-WAY POWER DIVIDERS ▪ HYBRID COUPLER ▪ RF FILTERS ▪ LOW NOISE AMPLIFIER (LNA) ▪ POWER AMPLIFIER (PA) ▪ MIL-STD-1553 STUB COUPLER 5-8 ▪ DATA LINK MODULES FOR UAV-DRONES ▪ UP TO 50 MBPS ▪ SMALL AND LIGHT-WEIGHT 2.4 – 5.8 GHz RADIO MODULES

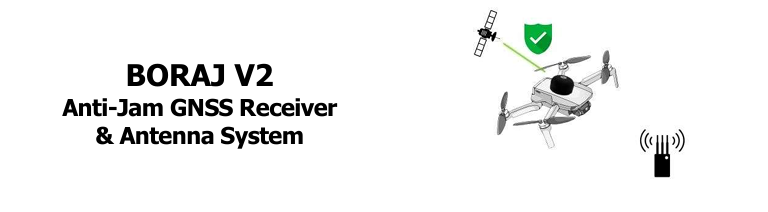

Highlights ▪ Prevents GNSS jamming caused by Jammers and other multipath signals ▪ SAJ (GNSS Shield) + Anti-Jam Receiver & Antenna ▪ When used with SAJ, BORAJ provides > 60 dB suppression of unwanted signals
HIGHLIGHTS ▪ PREVENTS GNSS JAMMING CAUSED BY JAMMERS AND OTHER MULTIPATH SIGNALS ▪ SAJ (GNSS SHIELD) + ANTI-JAM RECEIVER & ANTENNA ▪ WHEN USED WITH SAJ, BORAJ PROVIDES 40–50 dB SUPPRESSION OF UNWANTED SIGNALS

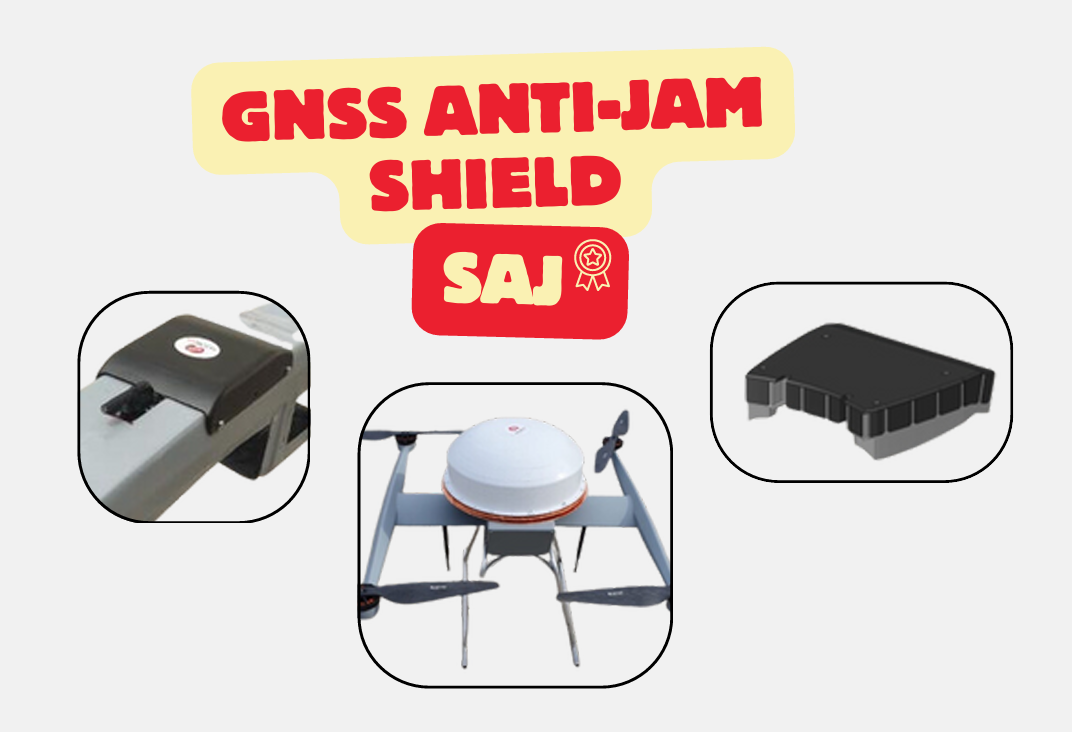

• SAJ SHIELDS GNSS SIGNALS FROM THE DAMAGING OF JAMMING AND MULTIPATH INTERFERENCE. • DESIGNED WITH PLATFORM-SPECIFIC MECHANICAL FEATURES. • MAJOR SWAP ADVANTAGES. • LAND, AIR, MARITIME PLATFORMS AND FIXED PLATFORMS. • TO DATE, SAJ HAS BEEN MOUNTED ON VARIOUS PLATFORMS, TESTED ACROSS MULTIPLE SCENARIOS, AND HAS PROVEN ITS EFFECTIVENESS. • ORDERED BY SEVERAL DOMESTIC AND INTERNATIONAL DRONE MANUFACTURERS AS WELL AS MILITARY INSTITUTIONS, AND IT IS CURRENTLY DEPLOYED IN ACTIVE MILITARY OPERATIONS.
• A HANDHELD NAVIGATION DEVICE THAT WILL SUPPORT ROUTE GUIDANCE FOR THE USER WITH GNSS SUPPORT AND PRELOADED/UPDATABLE MAPS ON A COLOR SCREEN • GOOD THERMAL RESISTANCE • WATERPROOF • LONG BATTERY LIFE UNDER CHALLENGING FIELD CONDITIONS • SUPPORTED BY THE TÜBİTAK SME R&D STARTUP SUPPORT PROGRAM (1507)

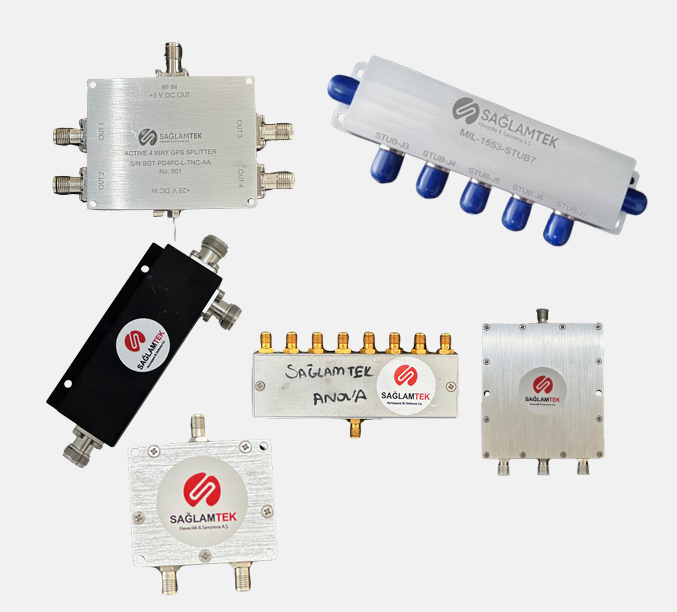

• FOR VARIOUS FREQUENCY BANDS: • 2-3-4-8-WAY POWER DIVIDERS • HYBRID COUPLER • RF FILTERS • LOW NOISE AMPLIFIER (LNA) • POWER AMPLIFIER (PA) • MIL-STD-1553 STUB COUPLER

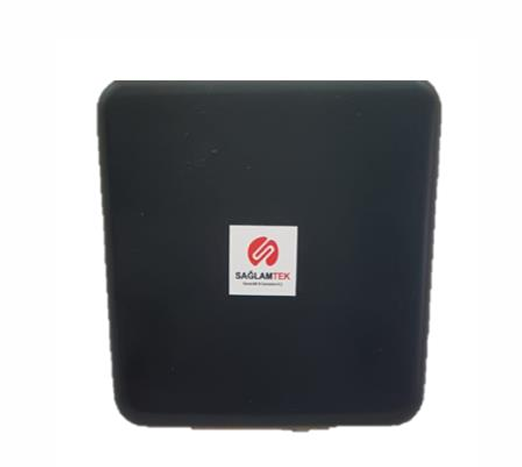

• COST-EFFICIENT • SWAP-EFFICIENT • COMPATIBLE WITH DJI-O3 GOGGLES • COMPATIBLE WITH ALL VIDEO/DATALINK MODEMS • 900-2400-5800 MHz • 1X1 SISO OR 2X2 MIMO

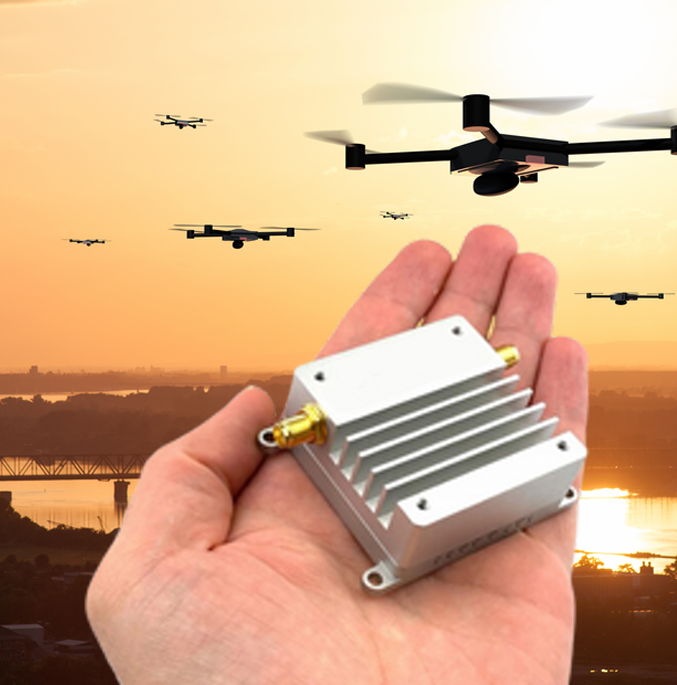

• FEATURES • FHSS BROADBAND POINT-TO-MULTIPOINT DATA TRANSMISSION • WEIGHT ONLY 25 G • EMPLOYS OFDM MODULATION AND SUPPORTS VARIOUS BANDWIDTHS • LOW POWER CONSUMPTION & SIZE

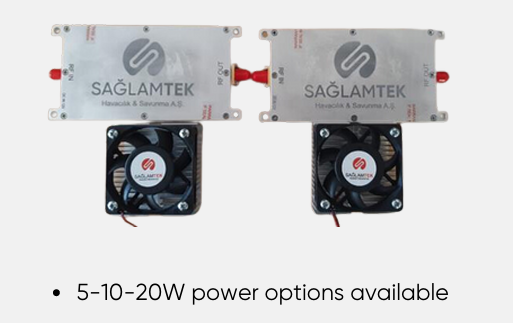

• COST-EFFICIENT • SWAP-EFFICIENT • 2X2 MIMO • FREQUENCY: 2.400- 2.475 Ghz • POWER: UP TO 30 dBm • BANDWIDTH: 4 / 8 MHz • ENCRYPTION AES-256 • DATA RATE: 25 Mbps • LATENCY <100 ms • RANGE: 20 KM • -40°C> > +50°C • DIFFERENT FREQUENCIES AVAILABLE: 900 MHz, 2300 MHz, 2500 MHz • DIFFERENT POWER OUTPUT OPTIONS AVAILABLE FOR RANGE EXTENSION: 1W, 5W, 20W • DIFFERENT ANTENNA OPTIONS AVAILABLE: PANEL ANTENNA, BLADE ANTENNA, HIGH GAIN OMNI ANTENNA
• NSN: 5895-27-0716789 • NCAGE: TL433 • AIRCRAFT INSIDE HEAVILY SECURED HANGARS ARE UNABLE TO RECEIVE GPS POSITIONING DATA DUE TO THE SHIELDING EFFECTS OF THE BUILDING STRUCTURE. • AIRCRAFT MUST BE MOVED OUTSIDE THE HANGAR FOR AVIONICS TESTING, INCREASING LABOR AND TIME DEMANDS. • IN URGENT SITUATIONS, THE TIME-TO-FIRST-FIX (TTFF) FOR GPS SIGNALS CAN BE CRITICALLY DELAYED, IMPACTING MISSION READINESS. • A DOMESTICALLY DEVELOPED AND RELIABLE SOLUTION IS REQUIRED TO ADDRESS THESE CHALLENGES, ENSURING MISSION READINESS AND OPERATIONAL EFFICIENCY WITHOUT RELIANCE ON FOREIGN TECHNOLOGY.
